Autel MaxiSys Ultra S2 Diagnostic Scanner With AI, Large Storage 512GB, 6-In-1 VCMI2 Advanced Oscilloscope & Topology Map 3.0, Supports Wi-Fi 6, Upgraded of Autel Ultra(US Shipping Only)

Autel MaxiSys Ultra S2 - Smarter, Faster, More Powerful

The Autel Ultra S2 takes automotive diagnostics to the next level with a larger 13.7-inch anti-glare touchscreen, a faster 2.7G 8-core processor, and double the storage (512GB) compared to the original Ultra. The new VCMI2 offers Remote Expert functions, and the enhanced Topology 3.0 provides clearer vehicle network analysis. With Wi-Fi 6, faster charging, improved live graphing, and AI-powered image analysis for detecting dents and scratches, the Ultra S2 is the ultimate tool for professional technicians.

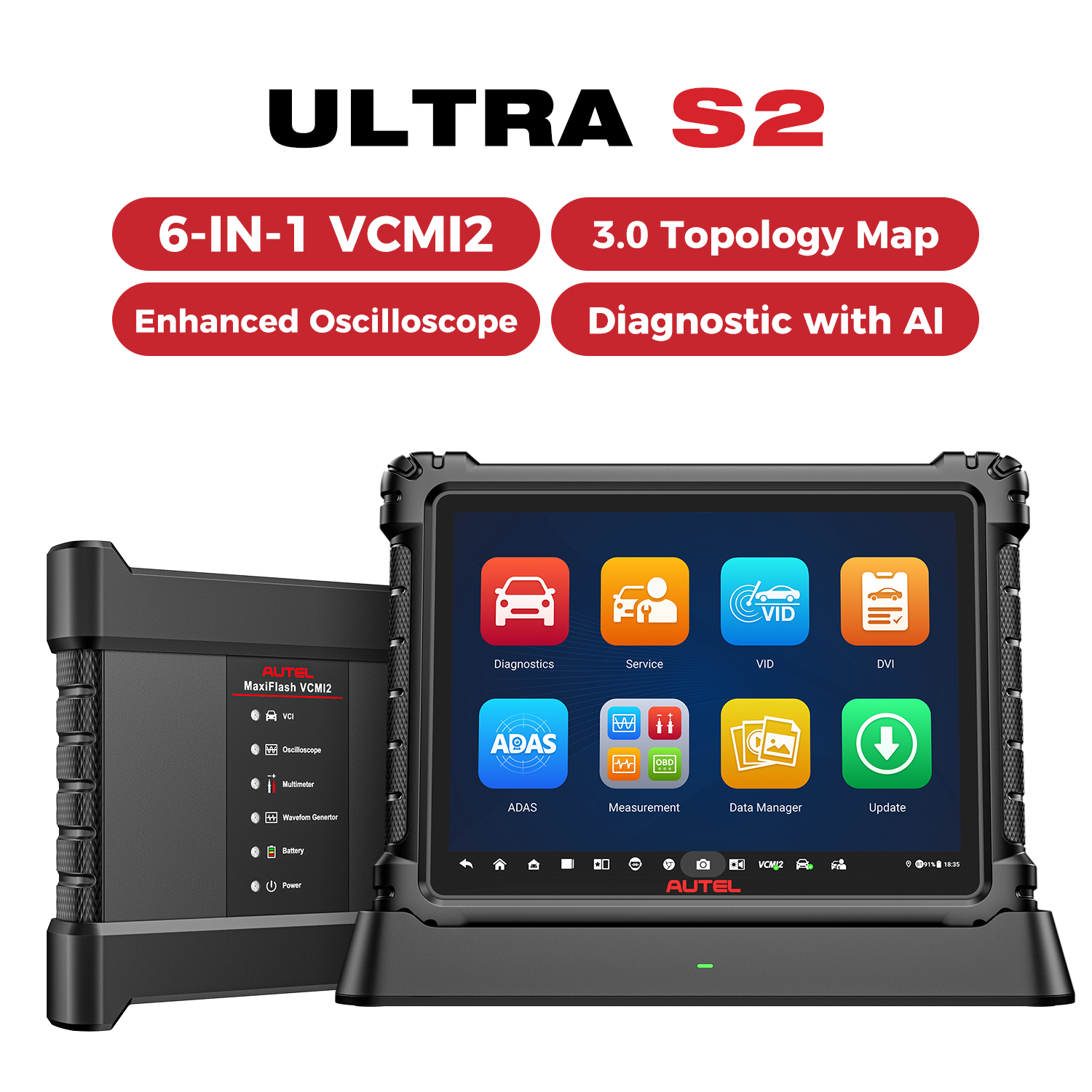

Autel MaxiSYS Ultra S2 Diagnostic Tablet with VCMI2 & AI

• MaxiSYS Ultra S2: 13.7-inch touchscreen Android-based tablet featuring 512GB of storage and a 6-in-1 vehicle communication and measurement device.
• Comprehensive Coverage: Supports U.S., Asian, and European vehicles (1996 and newer) with advanced diagnostics, including active tests, special functions, and coding/adaptations.
• Topology 3.0: OE-Style System Analysis of Multi-Speed Communication Protocol Networks; Active Module and Network Analysis to locate and directly ping ECUs for testing signal quality and network integrity.
• Enhanced Oscilloscope: Launch Scope directly from Live Data; EV Tests, including AC/DC Charging, HV Component, Interlock Loop Signal, Power-On Control, Resolver Sensor, and Thermal Management System; Added Parasitic Current Draw and Swing Tests.
• Multi-point Digital Vehicle Inspection: AI-powered image analysis for auto-detection of dents and scratches; Pair with Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool for detailed tire analysis.
• MaxiFlash VCMI2: Advanced VCI/J2534 pass-thru programmer, 4-channel Oscilloscope, Multimeter, Waveform generator, CAN-Bus Tester, and standalone Remote Expert device, all in a lighter, streamlined chassis.
• Data Visualization: Enhanced graphing capability to visualize multiple parameters, helping to identify the relationship between PIDs and pinpoint system anomalies.
• Live Data Fusion: Record and compare value changes across multiple systems.
• Parameter Grouping: Multi-PID selection for analyzing related parameters simultaneously.
• Reference Sampling: Record, store, and review selected PIDs for pre- and post-repair comparison, highlighting min, max, and average values.
• Service Menu: Features 48+ maintenance and service tasks, providing direct access to commonly performed service functions and resets.
• Hands-Free Navigation: MAX, a virtual assistant, enables hands-free operation of the Ultra S2 interface.
• Enhanced Docking Station: Tablet "Fast Charge" support for improved efficiency.
• Software and Warranty: Includes one year of software updates and a limited warranty.

Autel MaxiSys Ultra vs. Ultra S2: What's New?

Hardware Upgrades

• Display: Ultra S2 2025 Top Diagnostic Scanner features a larger 13.7” anti-glare touchscreen, offering better visibility.
• Memory & Speed: Doubled storage (512GB vs. 256GB) and a faster 2.7GHz 8-core processor.
• Connectivity: Supports WiFi 6 for improved data speed and reliability.
• Charging & Portability: Enhanced docking station with fast charge; lighter design for easier handling.
• VCI: Ultra S2 introduces VCMI2 (6-in-1), adding a standalone Remote Expert device.

Advanced Software & Diagnostics

• Enhanced Network Diagnostics: Ultra S2 offers real-time communication analysis between vehicle modules.
• Topology Mapping 3.0: More detailed network visualization, now showing terminating resistor values.
• Module Pinging: A new function to send signals to specific modules and detect faults in real-time.
• AI-Powered Inspection: Ultra S2 supports multi-point digital vehicle inspection with AI image analysis.

1. Autel Ultra S2 OBD2 Scanner with Topology Map 3.0

The Autel Automotive Scanner Ultra S2 features enhanced Topology Mapping 3.0, providing OE-style system analysis for multi-speed communication protocol networks. It visually maps Electronic Control Units (ECUs) and allows direct ping operations, helping technicians diagnose issues efficiently. With color-coded indicators, users can quickly identify the status of each module, enabling fast and precise troubleshooting in seconds.

• OE-Style System Analysis of Multi-Speed Communication Protocol Networks
• Active Module and Network Analysis: Locate and Directly Ping ECUs to Test Signal Quality and Network Integrity
• At-a-Glance Color-Coded Module Status

2. Autel Ultra S2 with Enhanced Oscilloscope Functionality

The Autel Ultra S2 Scan Tool features an enhanced oscilloscope powered by the VCMI2's improved 4-channel system, delivering higher accuracy, faster sampling rates, and better signal resolution. This advanced functionality enables professional technicians to capture, analyze, and diagnose complex waveforms across multiple vehicle systems simultaneously. With intuitive visualizations and real-time data processing, the Ultra S2 helps pinpoint electrical issues with precision, making it an essential tool for in-depth diagnostics.

• Launch Scope directly from Live Data Analysis
• New Comprehensive Electrical Vehicle Tests: AC and DC Charging, High Voltage Component, Interlock Loop Signal, Power-On Control, Resolver Sensor, and Thermal Management System
• Added Parasitic Current Draw, Swing Tests

Autel Ultra S2 6-in-1 MaxiFLASH VCMI2

Autel Maxisys Ultra S2 comes with Advanced VCI/J2534 pass-thru programmer, improved 4-channel oscilloscope, Multimeter, Waveform generator, CAN-Bus Tester, and standalone Remote Expert device, all in a lighter and more compact chassis.

3. Autel Ultra S2 with Hands-Free Virtual Assistant

The MAX enables hands-free navigation of the Ultra S2 interface and provides verbal command functionality for various tasks and functions. Effortlessly initiate a system scan, access maintenance tasks, or execute active tests.

4. Data-Driven Diagnostics With Enhanced PID Analysis

• Data Visualization: Enhanced graphing capability to visualize multiple parameters to identify the relationship between PIDs and pinpoint system anomalies.
• Live Data Fusion: Record and compare value changes across multiple systems
• Parameter Grouping: Multi-PID selection for analyzing related parameters simultaneously. Ideal for engine fault and performance and emissions troubleshooting.
• Reference Sampling: Record, store, and review selected PIDs for pre- and post-repair comparison that will flag min, max, and average
• Real-Time, Split-Screen Analysis: Access the oscilloscope directly from the current Live Data screen

5. Enhanced Split-Screen Diagnostics

Diagnostics + X (multiple applications)

• Live Data + Oscilloscope
• Topology + Component Location
• Fault Scan + Ping Network
• Topology/List + Data Trouble Code (DTC)

6. Advanced Digital Vehicle Inspection

Thorough Multi-point DVI

• AI-powered image analysis for auto-detection of dents and scratches

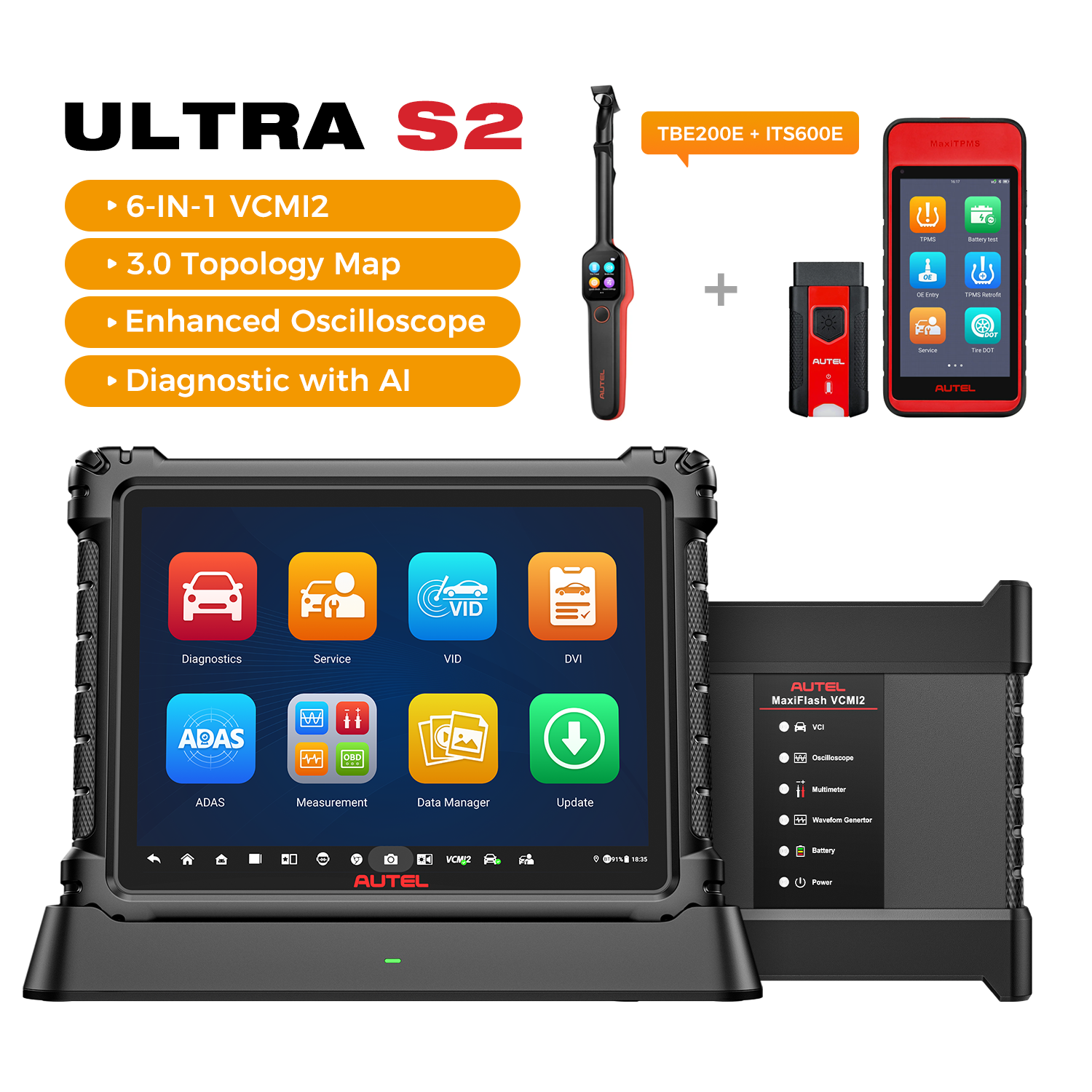

• Pair with Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool to produce detailed tire analysis
• Analyze vehicle damage and inspect parts and components for current and future services to increase revenue and customer satisfaction

Specifications

Package List

• 1 x Ultra S2 Main Unit
• 1 x MaxiFlash VCMI2
• 1 x Docking Station
• 1 x Main Cable V2.0
• 1 x USB 2.0 Cable V2
• 1 x AC/DC Adapter (12V)
• 1 x Auxiliary Power Outlet Adapter
• 1 x Spare Fuse 6*30mm 2 PCS
• 1 x Clamp CABLE
• 1 x Attenuator 20:1
• 1 x USB Type-C Cable
• 1 x Scope Test Lead 1x4PCS
• 1 x Multimeter Test Lead 1x2PCS
• 1 x Secondary Ignition Pickup 2PCS
• 1 x Breakout Lead 4x6PCS
• 1 x Multimeter Probe 1x2PCS
• 1 x Flexible Back-pinning Probe 2x2PCS
• 1 x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5PCS
• 1 x Back-pinning Probe Screw 2PCS
• 1 x Back-pinning Probe Replacement Needle 20PCS
• 1 x Small Alligator Clip 2x2PCS
• 1 x Large Dolphin Clip 1x2PCS
• 1 x USB to Ethernet Adapter
• 1 x Quick Reference Guide
• 1 x Packing List(This document)
• 1 x Soft Cloth
• 1 x Tool Box
• 1 x Accessory Storage Bag
• 1 x Carrying Case
