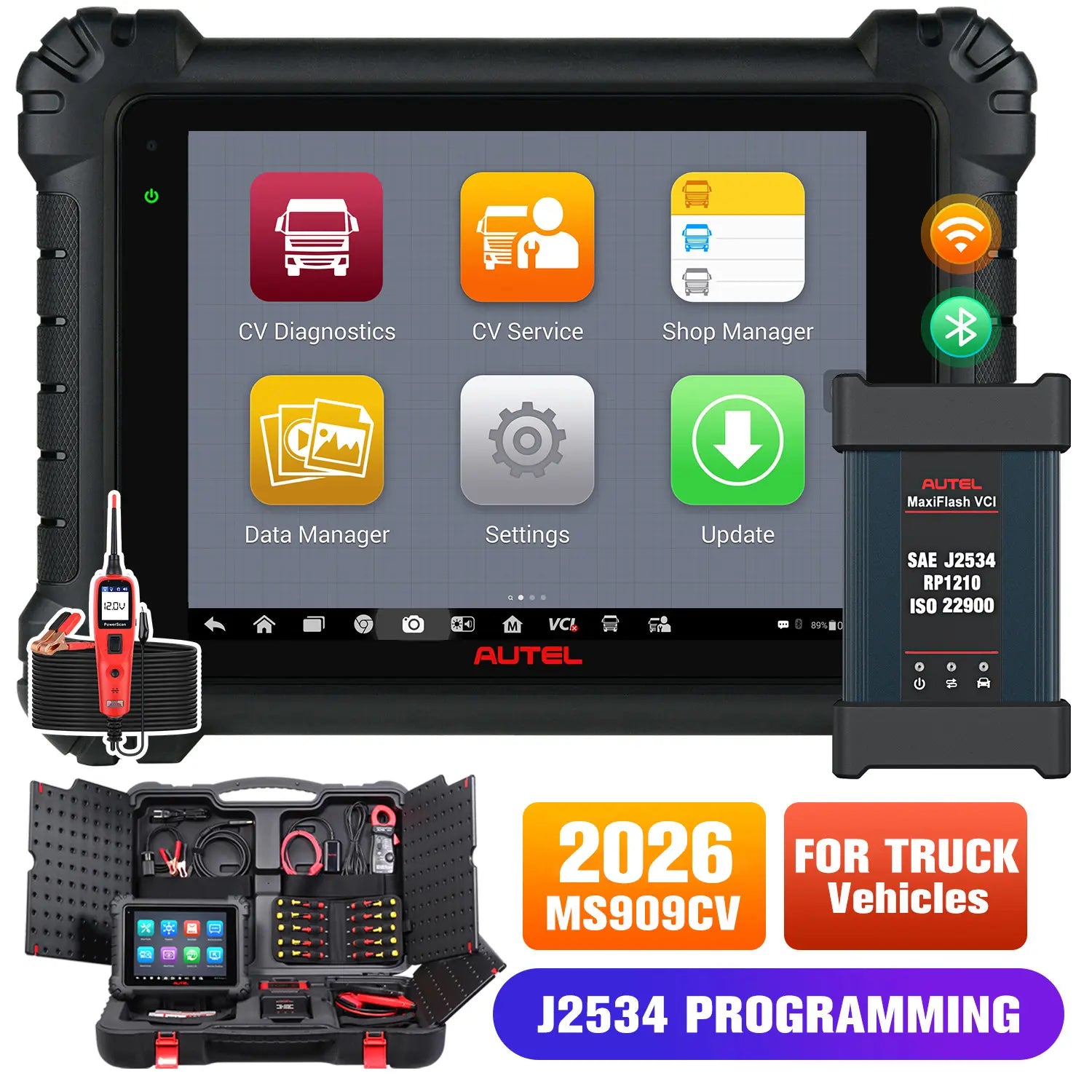

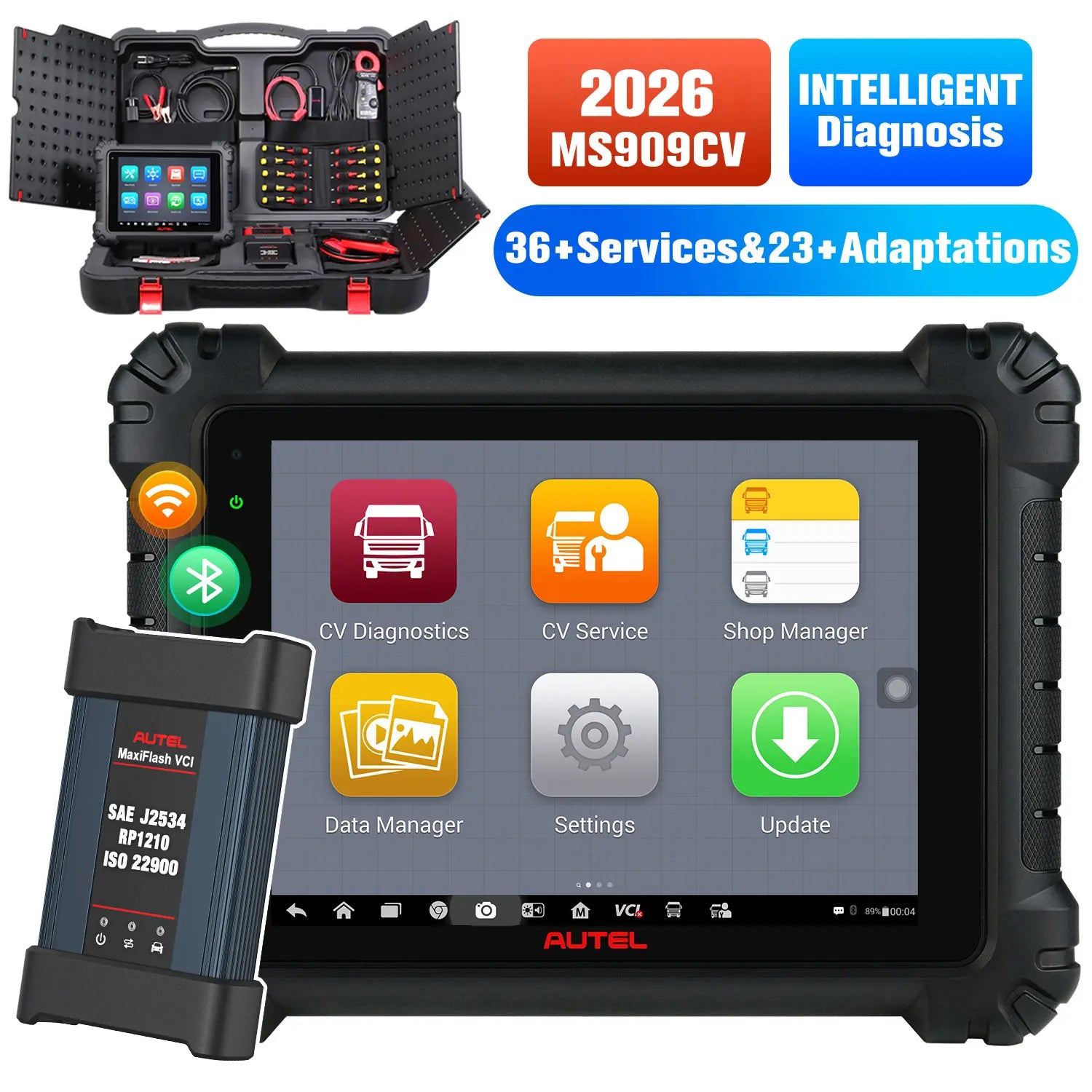

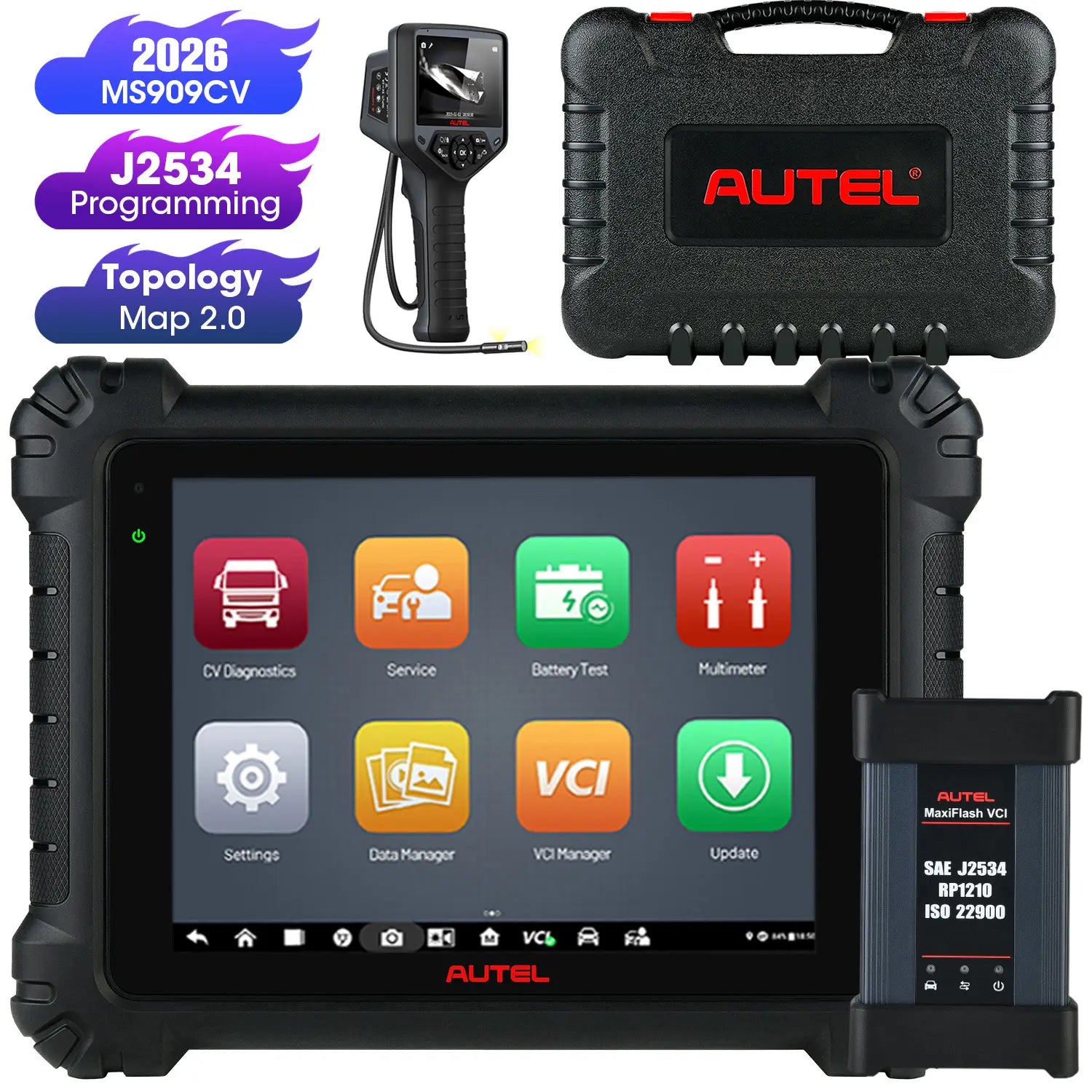

Autel MaxiSYS MS909CV Heavy Duty Truck Diagnostic Scanner - 2024 Newly Version
Autel's newest CV scanner for 2024 is the Autel MS909CV, which is the upgraded version of the MS908CV and MS906CV. As one of the flagship products in the Autel Maxisys line, the MS909CV brings comprehensive updates in all aspects. Equipped with a powerful 2.2GHz Quad-core A73 + 1.8GHz Quad-core A53 processor, 4GB RAM, 128GB on-board memory, and a massive 15000mAh battery, this intelligent diagnostic tool sets the industry standard for heavy truck repair and maintenance. With features such as topology mapping and advanced diagnostics, the Autel MS909CV stands at the forefront of the industry.
As One-Stop Solution for Heavy Trucks & Commercial Cars, Autel Maxisys MS909CV features Enhanced J2534 MaxiFlash VCI(Valued $1000), Advanced ECU Coding, Topology Map, All System Diagnosis, 36+ Special Functions & 23+ Adaptations, Battery Test with MaxiBAS B200(Included), Support D-PDU/RP1210/DoIP/CAN FD Protocols, etc., making it the most suitable scanner for trucks diagnosis.
Top Reasons To Choose Autel MaxiSYS MS909CV
Hardware:
- Powered by the revolutionary Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53).
- Equipped with 4GB RAM and 128GB on-board memory, with support for up to 256GB external SD card.
- Features a 9.7-inch TFT-LCD display with a resolution of 1536 x 2048 and capacitive touch screen functionality.
- Includes a built-in 16MP rear camera with autofocus and flashlight, as well as an additional 16MP front camera for clearer pictures.
- Offers dual Wi-Fi connectivity (802.11 a/b/g/n/ac 2x2 MIMO) for fast and reliable internet access.
- Fueled by a powerful 15000mAh lithium-ion battery, providing up to 10 hours of continuous operation.
- The J2534 VCI supports wireless working range up to 230 meters.
- Comes with MaxiBAS B200, which allows for detailed vehicle battery health testing.
Software:
- Runs on the Android 10.0 operating system, providing fast boot-up and efficient multitask processing. It offers easy vehicle brand/engine navigation and simplified VIN identification.
- Intelligent Diagnostics with Module Topology 2.0 is available on select vehicles, allowing for enhanced auto SCAN/VIN Scan, as well as DTC analysis and repair guided assist.
- Offers advanced ECU coding capability, enabling the writing of adaptive data to reinforce vehicle performance.
- Comes with over 36+ special services and 23 reset functions, all accompanied by step-by-step instructions for ease of use.
- Provides extensive vehicle coverage, supporting more than 80 US, Asian, and European commercial vehicle makes and machines.
- Allows for the printing of recorded data at any time and from anywhere using Wi-Fi connectivity.
- Includes 1 year of free updates to ensure access to the latest features and improvements.(Note: Only for US!)
Maxisys MS909CV Intelligent Diagnostics & Topology 2.0
The Autel CV scanner Maxisys MS909CV supports comprehensive diagnostics on over 80+ trucks, buses, and heavy-duty vehicles. It provides in-depth diagnosis for all available systems, including ECU information, reading fault codes, clearing fault codes, reading freeze frames, displaying live data, and performing active tests. The Autel Maxisys MS909CV is not just a diagnostic scan tool but also a highly helpful repair scanner for all types of DTC (Diagnostic Trouble Code) detections.
Intelligent Diagnostics:
- OEM Information (OE TSB): Matches the selected fault code with relevant vehicle manufacturer Technical Service Bulletins (TSBs), providing valuable information for diagnosis and repair.
- DTC Analysis: Offers repair assistance and detailed information related to the fault codes. This includes the fault description, condition, fault influence, possible cause, and potential solutions.
- Repair Assist: Prioritizes possible reasons for the Diagnostic Trouble Codes (DTCs) and provides effective resolutions accordingly.
- Repair Tips: Provides step-by-step guidance for repairing the identified issues, helping technicians follow a structured repair process.
- Relevant Cases: Offers relevant repair cases for reference, which may include supporting text or video materials.
Topology Mapping 2.0:
- Display each module's status and the number of Diagnostic Trouble Codes (DTCs) on a single page for easy viewing.
- Show the communication structure between the modules, providing an easy-to-understand wiring schematic specifically designed for on-highway trucks.
- Tap to enter the systems or modules with fault codes, allowing for quick access to detailed information and diagnostic procedures.
- Zoom in and out functionality available to check the color-coded modules, helping to identify and understand the connections and relationships between different components.
MS909CV Advanced ECU Coding with J2534 Programmer
The Autel Maxisys MS909CV features advanced ECU coding capabilities that go beyond what average diagnostic tools can support. It performs functions similar to an Original Equipment (OE) tool, allowing the Autel MaxiSys CV MS909CV to:
- Unlock Hidden Features
- Deactivate Dislike settings
- Activate High-End Car Functions
- Reflash the Control Modules
- Customize OE-Setting
- Enhance Vehicles Performance
Note: ECU Coding and Programming is not universal to all cars, and it varies from the commercial vehicle's manufacturer, year, and model, please check compatibility with VIN before you order.
MS909CV Heavy Truck Scanner with 36+ Services & 23+ Adaptations
The Autel advanced truck scanner, MaxiSys MS909CV, offers over 36 services and 23 adaptation functions to cater to various daily maintenance needs. With this professional diagnostic tablet designed for HD and trucks, you can perform adaptations without the need to visit a local workshop, saving yourself valuable time and money.
36+ Most Daily Used Functions:
- DPF Regeneration: Clears particulate matter from the Diesel Particulate Filter (DPF) through continuous combustion oxidation mode to stabilize the filter's performance. The Autel MS909CV provides a developed DPF system diagram, allowing customers to monitor the sensor status during the regeneration process.
- ABS Bleeding: Removes air from the brake system to restore its braking sensitivity.
- BMS Reset: Resets the monitoring unit of the car battery after replacing the battery or battery monitoring sensors.
- Complete Battery Health Check: Performs battery load tests, cranking analysis, and generator tests using the B200 tool.
- Brake Reset: Helps reset the brake sensor after changing or prior to changing the brake pads.
- Injector Coding: Matches new injectors to the vehicle's Engine Control Unit (ECU) after replacement.
- Oil Reset: Sets the oil light to zero and configures the next service mileage after an oil change.
- Air Suspension: Adjusts the height of the vehicle body for vehicles equipped with air suspension systems.
- Throttle Matching: Initializes the throttle actuators to restore learned values stored in the ECU to the default state.
23+ Reset functions:
DOC/D_P-F Replacement Reset, Fuel Pressure Adaptation Reset, Injector CEOM Reset, O2 Sensor Calibration, Injection Quantity Adjustment, Aftertreatment DP-F Regeneration, DSI System De-Aeration, MAF Sensor Calibration, Parameter Setting, Aftertreatment Maintenance, Aftertreatment SCR Catalyst Cold Soak Override, Boost Calibration, Timing Calibration and etc.
Maxisys MS909CV with Active Test / Bi Directional Control
The Autel MaxiSys MS909CV heavy-duty diagnostic scan tool is capable of sending test commands to subsystems or components without controlling the vehicle. This allows you to test the integrity of various systems or parts by monitoring their responses. For example, you can test components such as the ABS pump, valves, windows, doors, roof, lamps, and more.
One specific example is the OBD II generic information Mode 1. In this mode, you can initiate a request for information from the powertrain control module (PCM), and the PCM responds by sending the requested information back to the scan tool for display.
MS909CV with More Extended Functions Facilitate Your Work
Auto SCAN 2.0 / Auto VIN/ Scan VIN / Plate Scan
The Autel MaxiSys MS909CV is designed to simplify all types of work, and it specifically categorizes trucks by "Vehicle Brand" and "Engine." This allows experienced technicians to perform targeted maintenance and services based on specific requirements quickly.
If you're unsure about the vehicle and ECU information, you can use the "Run Auto VIN" feature to automatically retrieve the necessary details. Additionally, the Autel MS909CV supports direct scanning of the license plate for quick car identification.
Battery Test with the B200 Included
The Autel CV scanner MS909CV package includes a battery tester called the Autel MaxiBAS B200. This battery tester is designed for analyzing battery and cranking/charging systems. It allows technicians to view the health status of a vehicle's battery and electrical system through an in-vehicle test.
If you need to test a separate car battery, don't worry. You can perform an out-of-vehicle test using the MS909CV tablet. This allows you to accurately assess the real-time battery health condition flawlessly.
Print Via WIFI Directly
The Autel MaxiSys MS909CV, with the latest software updates, now supports direct printing of reports via WIFI. Unlike previous models such as the MS908CV and MS906CV, which required users to print reports through a computer, the MS909CV eliminates the need for extra software. With the MS909CV scanner, you can connect directly to a printer wirelessly.
To enable this feature, simply set "Print Via WIFI" as the default option in the "Print Setting" menu. Reports can then be generated and printed instantly without any hassle.
MS909CV with Advanced Hardware & Wide Coverage
Top-End Hardware in Industry
You don't need to look elsewhere because you're checking out the Autel Top CV Diagnostic Scanner, the Autel MaxiSys MS909CV. It comes with impressive features such as an Android 10.0 operating system, a powerful Qualcomm 660 Octa-core Processor, 4GB of RAM, and 128GB of on-board memory. The device is equipped with a 9.7" 1536 x 2048 screen and dual 16MP+16MP cameras. It also boasts a super large capacity battery of 15000mAh, which supports over 10 hours of continuous working.
With its intelligent diagnostic capabilities, the Autel MaxiSys MS909CV is undeniably a fantastic tool that ensures every penny you spend is worthwhile.
Unmatched Vehicle Compatibility
- EXPERT: ALLISON, BENDIX, CATERPILLAR, CUMMINS, INTERNATIONAL, DETROIT, PACCAR, VOLVO, FREIGHTLINER, WABCO, ZF MERITOR, MERCEDES BENZ, BOSCHAUTO, POWER STROKE, AISIN, IVECO, MACK, EATON, MTU, MWM...
- BUS: OBD, VOLVO, AGRALE, HINO, ISUZU, MERCEDES BENZ, MITSUBISHI FUSO, VOLKSWAGEN, TOYOTA, RENAULT...
- TRUCK: VOLVO, AGRALE, AUTOCAR, CAPACITY, DODGE, FIAT, FORD, FOTON, FREIGHTLINER, GMC, GREAT WALL, HINO, HYUNDAI, ISUZU, KIA, MERCEDES BENZ, MITSUBISHI, MITSUBISHI FUSO, NISSAN, STERLING, INTERNATIONAL, IVECO, VOLKSWAGEN, KENWORTH, MACK, PETERBILT, WORKHORSE, WESTERN STAR, SETRA, UD, RENAULT...
Autel MS909CV Specification
| Operating System | Android 7.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
Dual WiFi(802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB) |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Camera |
Rear: 16.0 Megapixel, Autofocus with Flashlight Front: 16.0 Megapixel |
| Audio input/output |
Microphone 3-Band 3.5 mm stereo/standard headset jac |
| Power and Battery |
15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C |
| Battery Charging Input | 12V/3A Adapter |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Net Weight | 1.66kg (3.66 lb.) |
| Warranty & Update | 1-Year Free Update & Warranty |
AutelMaxiSYS MS909CV Packing List
MS909CV Product guides and documents
MS909CV User Manual (PDF)Certificate
