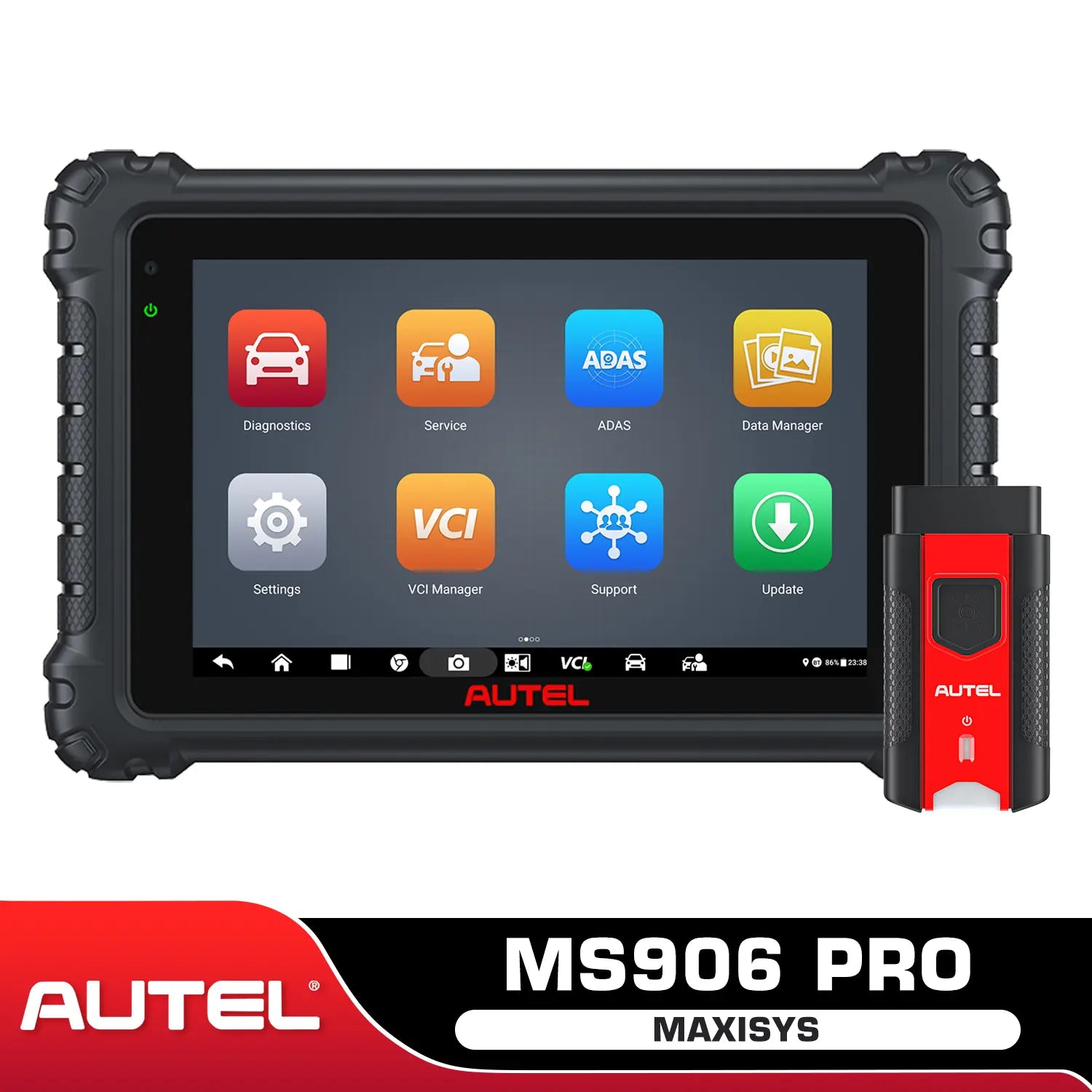

Autel MaxiSys MS906 Pro Diagnostic Scanner - 2024 Best Seller
Autel MaxiSys MS906 Pro Automotive Scanner is a new enhanced model from Autel. Equipped with functions of Advanced ECU Coding, OE-Level All Systems Diagnostic, VAG Guided Function, Bi Directional Control, 3000+ Active Tests, 36+ Maintenance Services, FCA AutoAuth Access, 99% vehicle coverage compatibility, Work with BT506 Battery Tester & MV108S Camera Inspection, and Supports Newest CAN FD/ DoIP protocols, Maxisys MS906 Pro OBD2 Scanner becomes a popular scanner for every DIYers and car workshops.
Compared with old model Autel MS906/ MS906BT/ MS908/ MK908, which all based on Android 4.4, Autel MaxiSys MS906 Pro Scanner takes a big leap directly to Android 10.0 operation system, 4G RAM and 128G ROM memory enables extremely fast diagnosis, 16M & 5M Dual Camera for ultra clear and detailed testing results, and with the large 11600mAh battery life, you can work all day long with just 1 time charging. It is time to try something NEW!
Autel Maxisys MS906 Pro Scanner Main Features
Hardware
- Android 10.0 OS, powerful Qualcomm 660 Octa-core Processor
- 8" inch 1920x1200 resolution, 11600mAh battery
- 4G RAM & 128G ROM, 5M &16M Camera
Software
- Advanced ECU Coding: Supports ECU Coding to recode/ reprogram new ECUs, modify corresponding parameters, match, learn & code ECU modules, update ECU coordination to disable annoying functions, refresh hidden advanced functions.
- Offline ECU Adaptation: Support Offline programming(programmable module installation) for Ford(up to 2018).
- Personalization: Customize OE settings like Deactivating Start/Stop
- DoIP/CAN FD Protocol: allows to code BMW F&E chassis and Porsche, and V200 provide brand-new DoIP/CAN FD Protocol to cover 99% vehicles
- 36+ Maintenance Services: Integrates 36+ services, meeting 99% of maintenance needs. Such as Oil Reset, ABS, EPB, SAS, Throttle, etc.
- Battery Test: Work with BT506 to perform complete battery test
- OE-Level Diagnosis: Read DTCs and data streams for all available systems. Such as engine, ECM, TCM, PCM, BCM, etc.
- Bi-directional Control/Active Tests: Performs real active tests that can send commands to the vehicle's ECU.
- VAG Guided Function: Provides step-by-step repair guidance to get the job done easily for VW, Audi, Skoda, Seat, Bently, etc.
- Refresh Hidden Features: Activate the hidden features already programmed to the car computers.
- FCA AutoAuth Gateway Access: Access & diagnostic 2018 and newer FCA vehicles(Chrysler/JEEP/Dodge/Fiat)! No more spend extra cost to buy 12+8 adapter!
- Auto Scan 2.0: Significantly optimized scanning speed of all vehicles with CAN protocols, speeding up scanning to 5X faster than before.
- Pre & Post Scan, Scan VIN & Scan License via the camera, Wifi Print, Work with MV108S and BT506 get full charging test and cranking test, Support Remote Expert, 1 Year Free Update, etc.
Autel Maxisys MS906 Pro With ECU Coding Function
The Autel MS906 Pro diagnostic tool offers a range of advanced features that were previously only available on dealership tools. It enables users to perform functions such as refreshing hidden functions, disabling annoying features, enhancing vehicle performance, customizing OE settings, reprogramming adaptive data for specific components after repairs or replacements, and configuring personalized settings for high-end models. These capabilities not only improve fuel efficiency but also ensure safe driving.
Unlock Hidden Functions
Stimulate hidden functions like Auto Park function, tilting rear-view mirrors, one-button lift window, start and stop memory, cancel power-on rule statement, display digital speed, residual temperature control, adjust turn signal flashing times, single door opening function, automatic window closing function for VW, BMW, Audi, Skoda, etc.
ECU Replacement
Featuring ECU/Module replacement functions, Maxisys MS906 Pro Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track. Compatible with Asian cars like Honda, Nissan, Toyota, Hyundai, Kia, etc. Introduce the new ECU module replacement to the car system and make the cars running smoothly.
Programmable Module Installation(PMI)
Download old data from the existing module and then uploaded to the new module.
Customize Your Own Car
- After you change the bad component or certain parts, you need to use this function to make a new code and recognize the new modules.
- By changing the code with the ECU coding, it's easy to improve vehicle performance or stimulate high-end functions for the car.
- ECU Online Coding Compatible with Volkswagen, BMW, Porsche, etc. Obtain the online data from the server and no need to match ECU manually; Code your car fast and easily via Internet to solve your car's problems; Restore the vehicle functional status after replacing the on-board modules.
Autel Maxisys MS906 Pro with 36+ Hot Service Functions
The Autel MaxiSys MS906 Pro OBD2 diagnosis scanner not only has powerful diagnostic functions but also has a vast range of service functions, which will help you easily complete repair work. A money saver for home technicians and money maker for car workshops.
Injector Coding--- Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
Brake Reset--- Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
GEAR Learn--- Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
Key Coding--- Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
Oil Reset--- Reset the oil life systems every time the oil and oil filter are changed;
SAS Reset--- Perform steering angle sensor calibration and clear records;
BMS Reset--- Evaluate the battery charge state, register the battery replacement, etc.; More completed battery and starter-related detail working with BT506;
ABS Bleeding--- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
Relearn Throttle--- Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
DPF REG--- Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
Note: Services and Reset functions are not universal to all the cars, please check compatibility with your VIN before you order.
Other advanced service functions designed for different car models:
- Compatible with Jeep: Erase all Ignition Keys, PCM Replaced, ECU Initialization, Initialize ESP Sensor, Cylinder Balance Test, Activate/Deactivate Front Seat Video, etc.
- Compatible with GM: Crankshaft Position (CKP) Variation Learn, Cylinder Power Balance, RPM control, etc.
- Compatible with Honda: Torque Sensor Learn, TPMS Sensor Position Check, Brake Pressure Sensor, etc.
- Compatible with Ford: Power Balance, Clear the Transmission Adaptive Tables, etc.
Note: All Functions are not universally compatibility, please send car make, year, model, VIN# and functions you need to us to check vehicle compatibility.
Full Bi-directional Control Automotive Scanner
Full Capability in Bi-directional Control/ Component Tests
Maxisys MS906 Pro 2024 newest car scanner diagnostic tool features full bi-directional control ability, to send commands to the vehicle's systems/components, to verify system input/output without using the vehicle's controls.
- Fuel Injector Balance, Injector Tests
- Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
- Cycling ABS Pump Motor, EVAP Tests
- Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
- Cooling fan motor command, Interior lighting test, High beam test
OE-Level Diagnosis Same as Original Factory Equipment
Autel MaxiSys MS906 Pro car diagnosis expert can read DTCs and data streams for all available systems, and perform active test on the most extensive vehicles.
For instance:
- Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.
Autel Maxisys MS906 Pro in Extensive Vehicle Coverage
USA:
GM, GMC, Ford, Chrysler, Dodge, Jeep
Asia:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion
Europe:
Benz, Sprinter, BMW, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Citroen, Dacia, Ford, Jaguar, Lambor Ghini
Maxisys MS906 Pro in 10+ High-end Functions
Work with Battery Tester BT506
With the extra Autel MaxiBAS BT506 Battery Tests, it can help you test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries, and can perform in-vehicle & out-of-vehicle tests to determine the health status of the battery, the starter, and the generator respectively.
Work with Autel MV108S Camera
This function can provide you clear image, such as engine cylinders and other small part inspections, easy-to-see.
VAG Guided Functions
Step-by-step operation guidance, easy to master usage for beginners. Compatible with VW/ Audi/ Skoda/ Seat, Bently cars etc.
Wi-Fi Printing
Autel 2024 newest scan tool MS906 Pro supports to print reports directly from any page, no need to connect to PC, click the "Print" from your MS906 Pro and you'll get the report right away. No need to link a PC to print like the old models of MS906, MS906BT, MK906BT!
Pre & Post Scan
- Pre-scan Report: To help to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations.
- Post-scan Report: To prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.
FCA AutoAuth
There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2017.
Remote Expert Service
Unlike other ancient model, Autel MS906 Pro have the newest Remote Expert Service. When you encounter any trouble in repairing, you can seek professional mechanician support on "Remote Expert Service" online. No need to purchase additional C-ends, one-click remote diagnosis.(Note: Please provide us S/N to avail this function for your device.)
Autel Maxisys MS906 Pro Specifications
| Operating System: | Android 10.0 |
| Processor: | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory: | 4GB&128GB |
| Display: | 8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: | • Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 5 Megapixel Rear: 16 Megapixel |
| Sensors; | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: | • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: | 11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage: | 12 V (9-35 V) |
| Power Consumption: | 5 W |
| Operating Temp.: | -10 to 55°C (14 to 131°F) |
| Storage Temp.: | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.05 kg (2.3lb.) |

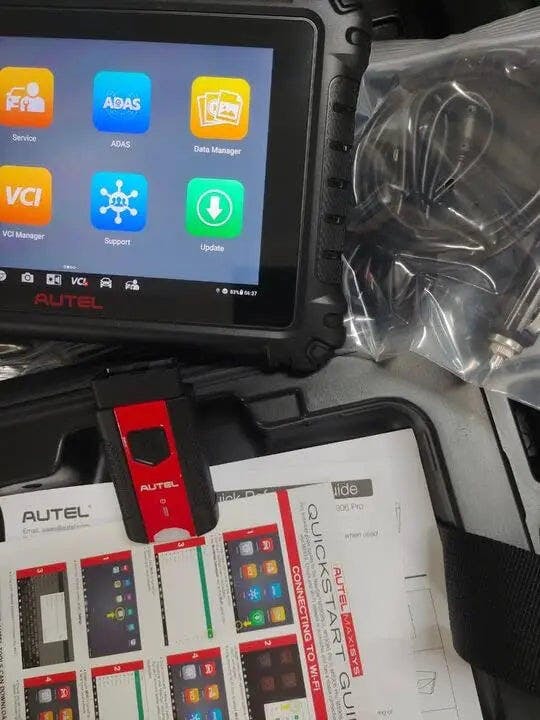

Autel MaxiSys MS906Pro Package List Includes
- 1x MS906 Pro tablet main unit
- 1x MaxiVCI V200
- 1x AC/DC External Power Adapter (12V)
- 1x Type C USB cable
- 1x Cigarette Lighter cable
- 2x Light Fuse (60x30mm)
- 1x USB to Ethernet Adapter
- 1x Quick reference guide
- 1x Soft Cloth
- 1x Carrying Case (380x300x120mm)
- 1x Packing List
MS906 Pro Comparison Chart
MS906 Pro Product guides and documents
Maxisys MS906 Pro Software Update
