Autel Maxisys MS906BT Diagnostic Scanner, 2023 Newest Ver. of MS906 with Advanced ECU Coding & Bi-Directional Control, 31 Service Functions

$1,399.00
Note ! ! !

The Autel Maxisys MS906BT has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel Maxisys MS906 Pro.

Autel Maxisys MS906 Pro 👉 https://www.diagmart.com/products/autel-maxisys-ms906-pro

Autel MaxiSys MS906 Pro Diagnostic Scanner in 2024, Advanced ECU Coding, Auto Scan 2.0, Bi-Directional, 36+ Services, VAG Guided Function, CAN FD DOIP Protocols, Remote Expert, Upgrade of MS906BT/ MK906BT/ MS908

Autel MaxiSys MS906 Pro Diagnostic Scanner in 2024, Advanced ECU Coding, Auto Scan 2.0, Bi-Directional, 36+ Services, VAG Guided Function, CAN FD DOIP Protocols, Remote Expert, Upgrade of MS906BT/ MK906BT/ MS908

$1,059.00

Fast Free Shipping

Delivery with UPS, USPS, FedEx

30-Day Return

30 Days from Date of Delivery

1-Year Free Warranty

1 YEAR from Date of Activation

Fast Free Shipping

Delivery with UPS, USPS, FedEx

30-Day Return

30 Days from Date of Delivery

1-Year Free Warranty

1 YEAR from Date of Activation

Note ! ! !

The Autel Maxisys MS906BT has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel Maxisys MS906 Pro.

Autel Maxisys MS906 Pro 👉 https://www.diagmart.com/products/autel-maxisys-ms906-pro

[discontinued]

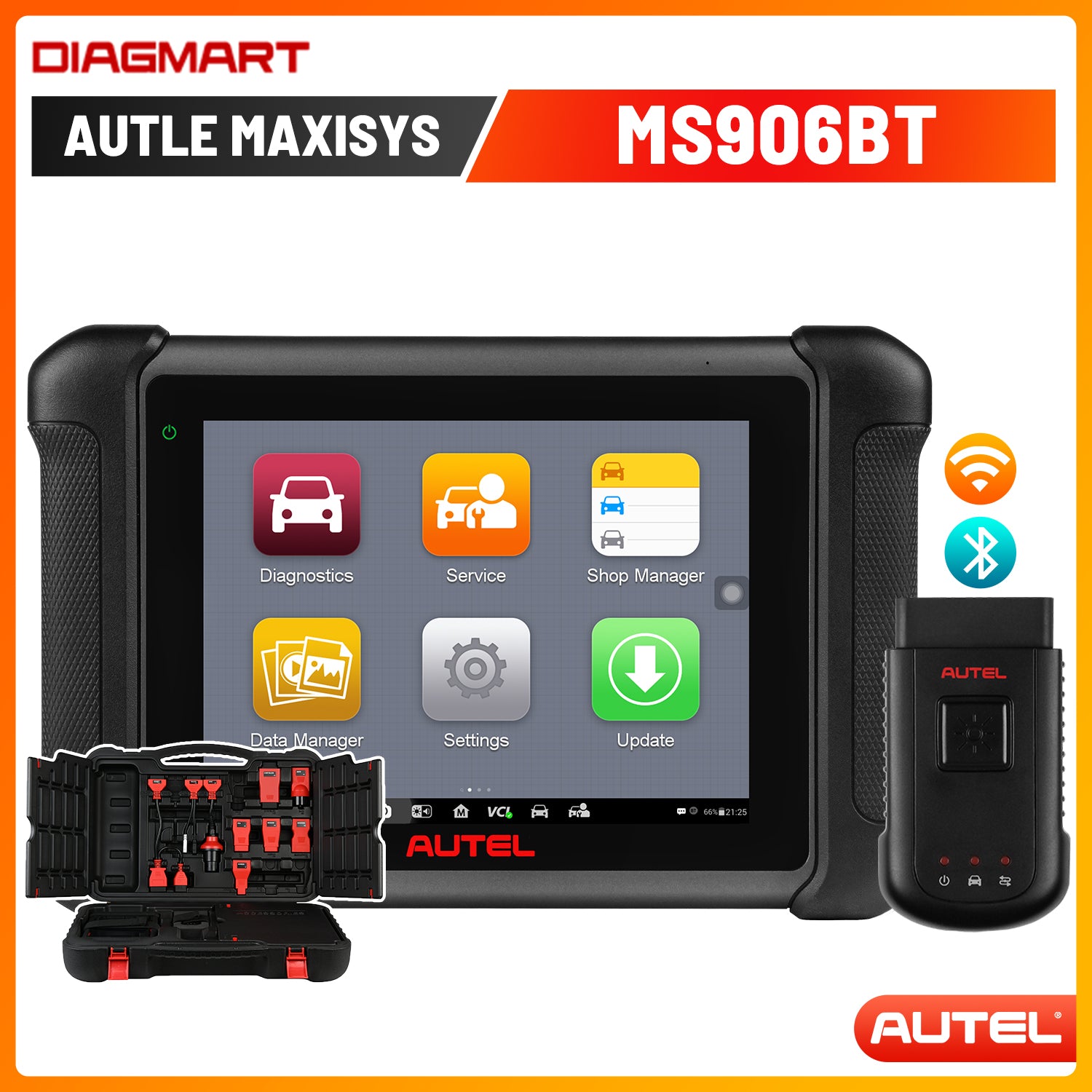

Autel MaxiSys MS906BT

Autel MaxiSys MS906BT is an advanced automotive diagnostic scanner, with its reasonable price but excellent capability, making it popular with home mechanics, auto DIYers, and repair shops. Unlike the old version Autel MS906, 2022 newest wireless version MS906BT takes a great leap in hardware and software, coming with doubled battery capacity(10000 mAh) and German wireless technology, integrating advanced ECU coding (same as MS908S), Bi-directional control, 31+ services, VW/Audi Guided functions, refresh hidden features, All system diagnosis (same as MS908 MK908P), covering 10,000 + car models in the market.



MS906BT Features

  1. Advanced ECU Coding: change pre-programmed options already existent in the vehicle’s software.
  2. OE-level All System Diagnostic: scan all electrical vehicle systems and troubleshoot faults codes.

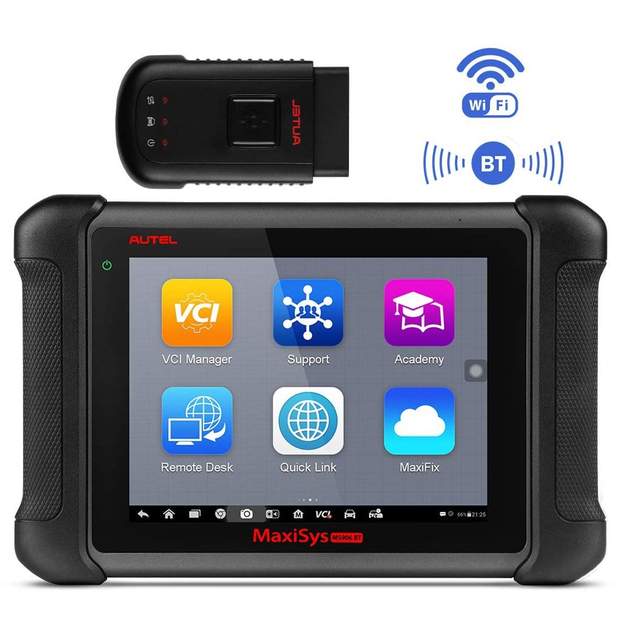

  3. Wireless Version: equipped with Bluetooth VCI, up to 75feet(23m) working range, performing wireless diagnostic with more stable and faster data transmission.
  4. 31+ Maintenance Services: integrate 31+ services, meeting 99% of maintenance needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc.
  5. Bi-directional Control/Active Test: perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work.
  6. VAG Guided Function: provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations.

Autel MaxiSys MS906BT Key Features:

Advanced ECU Coding, Same as MS908

Commonly used in the following aspects:

Module Replacement: When you need to replace a new ECU module or a bad component, ECU coding can help you activate/match/code/relearn “these new guys” to the car computer and get them recognized by other in-vehicle modules, then they can work.

Vehicle Upgrade: Autel MS906BT can access to Autel server to get OEM update data to upgrade or replace the existing software or firmware in the ECUs to the latest version, fixing software-controlled drivability issues.

Customization: ECU coding can help you to change factory settings and refresh hidden features.

So you can disable some unneeded factory settings, such as disable auto start-stop, annoying chimes like door open/close chime, seat belt chime, low fuel chime, etc. Also you can activate the hidden features already programmed to the car computers to get high-end functions, such as auto start-stop system, US-style daytime light, auto door look at a particular speed,etc. Compatible with VW, Audi, Skoda, etc.

    31+ Most Commonly Used Resets & Services

    20+ Commonly Used Reset Functions for Fast Maintenance or Repairs:

    Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Regeneration, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

    10 Advanced Functions for Different Vehicle Models:

    Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

    Oil Reset: Reset service mileage & service intervals after engine oil is changed.

    -EPB Reset: To replace the worn brake pads/discs, you need to use MS906BTto enter Service mode, and then exit the mode after the replacement.

    -BMS Management: Register the battery after replacement.

    -DPF Regeneration: Perform DPF Regeneration to clear the blockage through continuous burning of the particulate matter captured in the DPF filter and turn off DPF warning light.

    -SAS Calibration: When you disassemble the steering column or the steering angle sensor has a problem/replacement, it is necessary to do a reset/calibration to ensure the accurate steering of your vehicle.

    -ABS bleeding: Help you activate and cycle the ABS pump to bleed the air from the ABS module, thus avoiding brake insensitivity and brake failure.

    -Injector Coding: Write the new code to the ECU after the replacement of the injector;

    Dealership-Level All System Diagnostic

    Wireless diagnostic tool MS906BT, with the same diagnostic capability as MS908/MK908P, can scan all available car systems, such as PCM, ECM, TCM, CTM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc, to read codes, clear codes, view live data of multiple sensors in text or graph, retrieve vehicle information, perform active tests, guided function, coding, adaptation, etc. With just a few simple clicks, you can quickly locate the issues to win more time and business.

    Read codes retrieve detailed information of DTC records to locate problems

    Clear codes: erase DTC records and other data after reading codes and making appropriate repairs

    Live data: view live data and parameters of multiple sensors in text, graph & analog

    ECU Info: view the specific information for the tested control unit, including unit type, version numbers and other specifications.

    Auto VIN: automatically identity your vehicle’s make, model, and year information with one click

    Autel MaxiSys MS906BT High-end Features

    Bidirectional Control/Active Test

    MS906BT scan tool can perform real active tests that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS motor, window, door, solenoids, valves, wipers, headlamp, etc, helping quickly find the issue and in many events test the sensors or parts to verify the issues.

    -Do cylinder drop test (power balance test) to determine which cylinder is on fire

    -Turn on /off the fuel pump to determine if there is a broken fuel pump

    -Turn on /off windshield wipers, windows,door

    -Cycle the a/c clutch on and off

    VAG Guided Function

    Designed for VAG cars!! Autel MaxiSys MS906BT with guided functions provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operation. For example, if you want to replace brake pads, MS906BT scanner will tell you when to enter Service mode, when to replace the brake pads, with detailed steps and tips. Best tool for beginners and DIY mechanics. Compatible with VW, Audi, Skoda, Seat, Bently, etc.

    Refresh Hidden Features

    Automotive diagnostic scan tool MS906BT can help you activate the hidden features already programmed to car computer to get high-end functions. Such as install auto start-stop system, customize injector light, change US-style daytime light, adjust auto door look at particular speed. Compatible with VW, Audi, Skoda, etc.

    Auto VIN & Auto Scan

    You don’t need to worry about the operation, open and use it, as naturally as if you were using a smartphone. Two friendly shortcut keys AutoVIN and AutoScan make everything easier: AutoVIN can quickly identify your car’s make, model, and year information; AutoScan can automatically scan all car systems and find out fault codes.

    2022 Newly-added Features

    Pre/Post Scan Report: Generate and print out the "Pre-SCAN Report" before repairs, formulate an effective repair plan, execute "Auto SCAN Repaired Vehicle" after repairs, ensure that no new faults are generated during repairs, and certify all DTCs on the pre-scan report have been repaired.

    Cloud Report Management: you can upload diagnostic reports to Autel Cloud and share reports with customers through QR Code/ email/ text message easily, customers can view the reports anytime.

    Autel Online Assistance

    Data Logging: If you are confused about diagnostic results, you can upload your diagnostic report to the Autel server on Data Logging, so that Autel engineers can directly receive and deal with your problem, and feedback the problem solution.

    Remote Desk: If you have any operational problems, you can use Remote Desk to allow Autel’s support center, colleagues, or friends, to control your MS906BT tablet on their PC and perform remote diagnostic, with step-by-step operation to show you, easy to solve problems.

    Autel MaxiSys MS906BT Add-on Functions

    Maxisys MS906BT is a diagnostic scanner with various interfaces that can work with more useful Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card, etc.

    Work with inspection camera (MV105/MV108): you can use it to examine difficult-to-reach areas normally hidden from sight, such as engine cylinders, and small part inspections like spark plug holes, and record digital still images and videos.

    Work with Oscilloscope(MP408): you can use it to measure and test virtually all the electrical and electronic components and circuits in any modern vehicle to get an insight into the inner workings of a vehicle’s electronic circuits and get more specific diagnostic details. (purchase separately)



    Digital and Graphical Display of Parameters

    Using MaxiSys you can display the parameters of the system conveniently. Some parameters are more likely to be monitored in analog form, for example, pressure. Some parameters are more conveniently viewed in graphical form, by observing their change in time (potentiometers, oxygen sensors). Some parameters must be displayed in the graph to observe changes relative to each other (for example, air mass flow and engine speed). Only in MaxiSys, all these ways of displaying are available for all parameters and all components, regardless of the makes and models of the car.

    Special Tests

    The actuators are not always visually visible or too complex to assess their performance with organoleptic (eyes, ears) methods through normal activation. That's why the test components are implemented in MaxiSys scanners. Test components will allow you to include special test modes in the computer, in which the electronic system itself creates conditions for verification and evaluates its results with further recommendations to the expert

    Autel MaxiSys MS906BT Vehicle Coverage

    Automotive diagnostic scanner MS906BT has the most extensive complete system coverage for more than 80 US, Asian and European makes and models, including BMW, Chrysler, Dodge, JEEP, Benz, Ford, VW, Fiat, Volvo, Ferrari, Toyota, Mazda, Land Rover, Porsche, etc 80+ Vehicle Makes.

    Comparison of MS906BT, MK906BT, and MS906

    Comparison MS906BT MK906BT MS906
    Price $949 $1195 $1049
    Software
    All Systems DTC Scan √ √ √
    Bi-Directional Control √ √ √
    Service Function √ √ √
    Data Manager √ √ √
    Auto VIN Technology √ √ √
    ECU Coding √ √ /
    ECU Programming / / /
    Multilanguage / √ /
    Wireless Connection √ √ /
    Hardware
    Display Size 8" 8" 8"
    Wireless VCI MaxiVCI V100 MaxiVCI V100 /
    Battery Life 10000 mAh 3.7 V 10000 mAh 3.7 V 5000 mAh 3.7 V
    Memory Storage 64GB 64GB 32GB





    Autel MS906BT Specifications:

    Operating System Androidℱ 4.4.2, KitKat
    Processor Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
    Memory 2 GB RAM & 64 GB ROM
    Display 8.0" LED capacitive touch screen with 1024x768P resolution
    Connectivity Wi-Fi (802.11 b/g/n) USB: 2.0, Mini USB 2.0
    Wireless BT V2.1+EDR, Class1, HDMI 1.4a
    SD Card (support up to 32 GB)
    Camera (rear) Built-in 8-Megapixel Rear Camera
    Autofocus & Flashlight
    Sensors Gravity Accelerometer
    Ambient Light Sensor (ALS)
    Audio Input/Output Microphone
    Single Speaker
    3-Band 3.5 mm stereo/standard headset jack
    Power and Battery 10,000 mAh 3.7 V lithium-polymer battery
    (up to 14 hours of continuous operation)
    Charging via 12 V AC/DC power supply
    Input Voltage 12 V (9-35 V)
    Power Consumption 5 W
    Operating Temperature -10 to 55°C (14 to 131°F)
    Storage Temperature -20 to 70°C (-4 to 158°F)
    Dimension (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
    Weight NW: 1.05 kg (2.3lb.)
    Downloads Autel MS906BT User Manual

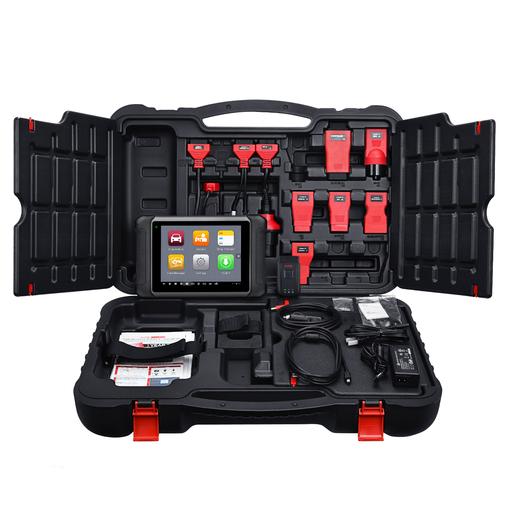

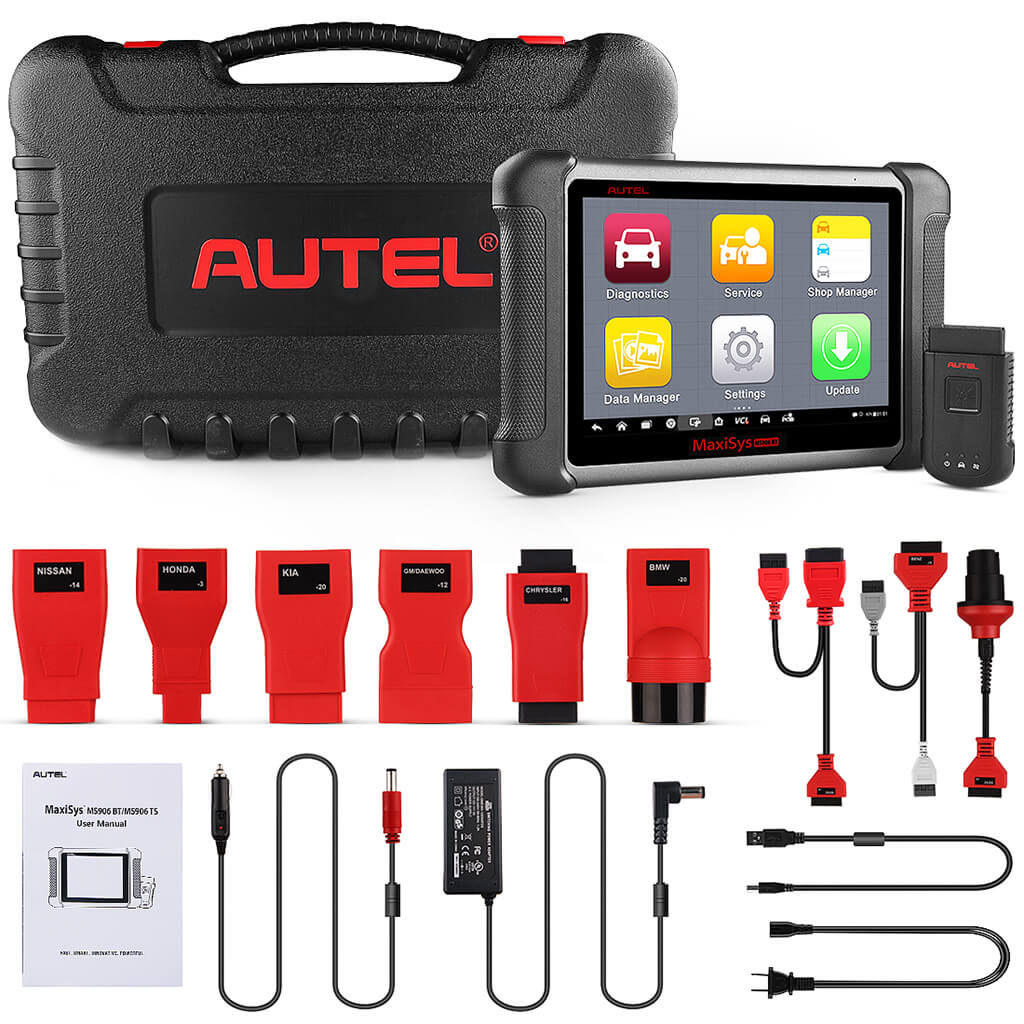

    Autel MS906BT Package List:

    • Maxisys MS906BT main unit
    • AC/DC Adapter (12V)
    • Adapter for Chrysler-16 (America Only)
    • Adapter for GM/Daewoo-12
    • Adapter for Benz-38
    • Adapter for Mitsubishi/Hyundai-12+16
    • Adapter for Honda-3
    • Adapter for BMW-20
    • Adapter for Kia-20
    • Adapter for Nissan-14
    • Adapter for VW/AUDI-2+2
    • Cigarette Lighter
    • MaxiVCI V100
    • Lighter Fuse
    • Soft Cloth
    • Mini USB Cable
    • User Manual
    • Packing List
    • Carrying Case
    • Quick Reference Guide

     Product Display


    MS9060BT Product guides and documents

    MS906BT User Manual (PDF)

    Certificate

    www.diagmart.com is Autel Authorized Online Agent. Products Created by Autel Âź Innovation & Quality You Can Trust.

    autel store diagmart

    Shipping

    Free Shipping on All Orders Without Any Tax.

    All orders are processed and shipped out within 24 hours of being placed. Once your order has been shipped out, we will provide you with a tracking number so that you can easily track your package and stay updated on its delivery status. With this tracking number, you'll be able to see the expected delivery date and have peace of mind knowing exactly when your package will arrive.

    Fast Shipping from Local Warehouse: Receive Your Order in 5-7 Days!

    Returns

    30 calendar days from the date you received it

    If, for any reason, you are not satisfied with your purchase or if the product does not meet your expectations, you can return it within 30 calendar days from the date you received it. To qualify for a refund, please ensure that the product is returned in its original packaging along with the original purchase receipt.

    Our team will be glad to assist you with the return process and issue a refund once we have received the returned product. Customer satisfaction is our top priority, and we strive to ensure that all of our customers are happy with their purchases from diagmart.com.

    Waranty

    one (1) year limited warranty

    At DiagMart, we stand behind the quality of our products and offer a one (1) year limited warranty on all products sold exclusively on diagmart.com.

    This limited warranty provides coverage for defective workmanship or materials in your product and is your exclusive remedy. If your product is found to be defective during the warranty period, we will repair or replace it free of charge.

    Please note that this warranty only applies to products purchased directly from diagmart.com and does not cover damage caused by misuse, accidents, or normal wear and tear.

    We are committed to ensuring our customers have a positive experience with our products and services. If you have any questions or concerns about the warranty or need assistance with a warranty claim, please don't hesitate to contact our customer support team.

    QWhere are my orders shipped from?


    AYour order will be shipped from California or New York. If you want it to be shipped from a specific place, please let us know in advanced.


    Q: If the one year free update expires, will it stop working?


    AYou can still use your tool as usual even the one year update expires. It will not impact the normal usage of the tool. But, if you need the newest vehicle covrage, it's better to update.


    Q: How do I know wether this tool cover the vehicles I want?


    AGenerally, our tools are compatible with all the OBD2 vehicles, but functions may differ depending on vehicle makes and models. Please let us contact us and provide the VIN and vehicle make and model so that we can tell you the functions it supports.


    Q: Can I return the item if I realize that it does not fit my purpose?


    AYes, you can return the item within 30 days from the date you receive the it.

    During the subscription, you will be able to enjoy the latest released function by Autel and can cover the latest vehicle makes and models. If your device expires, you can still use the scanner's all functions without any issues, but we recommend you renew the software to enjoy the latest released function and expand coverage for the latest vehicle makes and models.

    Unleash Exclusive Rights with Upgrades

    Exclusive Function with software Upgrades

    TOOL FUNCTION UPGRADES

    Get the latest function from Autel

    Exclusive Vehicle Coverage with software Upgrades

    LATEST VEHICLE COVERAGE

    Expanded coverage for the latest vehicle makes and models

    Extra 1YR Update MSRP
    Manufacturer's Suggested Retail Price
    Our Price Where to buy
    MaxiCheck MX808 $124.50 $80.00 Shop Now
    MaxiCheck MX808S $125.00 $112.00 Shop Now
    MaxiCheck MX808TS $295.00 $210.00 Shop Now
    MaxiCheck MX808S-TS $245.00 $220.00 Shop Now
    MaxiCOM MK808 $124.50 $88.00 Shop Now
    MaxiCOM MK808BT $150.00 $104.00 Shop Now
    MaxiCOM MK808BT Pro $150.00 $135.00 Shop Now
    MaxiCOM MK808TS $295.00 $210.00 Shop Now
    MaxiPRO MP808 $349.50 $290.00 Shop Now
    MaxiPRO MP808S $245.00 $220.00 Shop Now
    MaxiPRO MP808S Kit $245.00 $220.00 Shop Now
    MaxiPRO MP808BT $349.50 $299.00 Shop Now
    MaxiPRO MP808BT Pro $255.00 $229.00 Shop Now
    MaxiPRO MP808TS $495.00 $449.00 Shop Now
    MaxiDAS DS808 $349.50 $245.00 Shop Now
    MaxiDAS DS808K $349.50 $245.00 Shop Now
    MaxiDAS DS808S-BT $255.00 $229.00 Shop Now
    MaxiDAS DS808S-TS $265.00 $245.00 Shop Now
    MaxiSys Mini MS905 $699.00 $529.00 Shop Now
    MaxiSys MS906 $495.00 $259.00 Shop Now
    MaxiSys MS906S $395.00 $329.00 Shop Now
    MaxiSys MS906BT $695.00 $375.00 Shop Now
    MaxiSys MS906 Pro $595.00 $460.00 Shop Now
    MaxiSys MS906TS $795.00 $640.00 Shop Now
    MaxiSys MS906 Pro-TS $695.00 $599.00 Shop Now
    MaxiCOM MK906BT $695.00 $435.00 Shop Now
    MaxiCOM MK906 Pro $495.00 $439.00 Shop Now
    MaxiCOM MK906 Pro-TS $595.00 $529.00 Shop Now
    MaxiCOM MK908 $895.00 $626.00 Shop Now
    MaxiCOM MK908 II $895.00 $749.00 Shop Now
    MaxiCOM MK908 Pro $1,295.00 $726.00 Shop Now
    MaxiCOM MK908 Pro II $1,295.00 $759.00 Shop Now
    MaxiSys MS908 $895.00 $650.00 Shop Now
    MaxiSys MS908 Pro $1,295.00 $795.00 Shop Now
    MaxiSys MS908S Pro $1,295.00 $795.00 Shop Now
    MaxiSys MS908S Pro II $1,295.00 $829.00 Shop Now
    MaxiSys CV $1,295.00 $959.00 Shop Now
    MaxiSys MS909 $1,295.00 $659.00 Shop Now
    MaxiSys MS919 $1,495.00 $899.00 Shop Now
    MaxiSys Ultra $1,695.00 $809.00 Shop Now
    MaxiSys Ultra EV $1,695.00 $1,299.00 Shop Now
    MaxiSys Elite $1,295.00 $600.00 Shop Now
    MaxiSys Elite II $1,295.00 $600.00 Shop Now
    MaxiSys Elite II Pro $1,295.00 $859.00 Shop Now
    MaxiCOM Ultra Lite $1,235.00 $739.00 Shop Now
    MaxiIM IM508 $399.00 $245.00 Shop Now
    MaxiIM IM508S $399.00 $299.00 Shop Now
    MaxiIM IM608 $895.00 $600.00 Shop Now
    MaxiIM IM608 Pro $895.00 $600.00 Shop Now
    MaxiIM IM608ProII/IM608SII/IM608II $895.00 $805.00 Shop Now

    Customer Reviews

    Based on 6 reviews
    100%
    (6)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    Juan F. (United States)
    overal good

    good service, good tool

    S
    Shitoy R. (United States)
    Best Scanner,Best Seller

    I bought the product to scan a Mercedes, Audi and a Toyota that I have. The product is simple to use after you learn how to use it. I really like the bluetooth function, it works every time I plug it in. I had an issue with scanning a Sprinter using the product and contacted technical support. Through email, they walked me through how to scan the Sprinter. I was able to diagnose the issue and make the repairs needed. The technical support was awesome!

    a
    amilcar r. (United States)

    Autel Maxisys MS906BT Kit OBD2 Scanner Complete Automotive Diagnostic System with Advanced ECU Coding, +TS501 Kit same as MS906TS

    E
    Earls W.K. (United States)
    VERY good for the price

    I'm a Mobile Mechanic, and do a fair amount of diagnostics. This tool enables me to do them faster than I could with my old Autel 803. The methods for some features take awhile to figure out (fuel trim live data, etc) is a little different from what I am used to "the PIDs are in the eOBD Generic section, rather than the OEM section", but once I got past that, it became extremely useful. This tool literally paid for itself in a few weeks. I love the Ford Power Balance Test, and use it almost weekly while riding with customers, and reproducing issues. It also saves me time when doing calibrations. I love the large touch-screen, and the ability to carry it to a customer while it is reading live data, to explain what I'm seeing.

    S
    Spencer S. (United States)
    I've used it for years.

    It's a great scanner. I have used it a lot. I finally have my own personal one now. I registered it on Autels website no problem. The seller is a good source for autel products.

    You have successfully subscribed!
    This email has been registered
