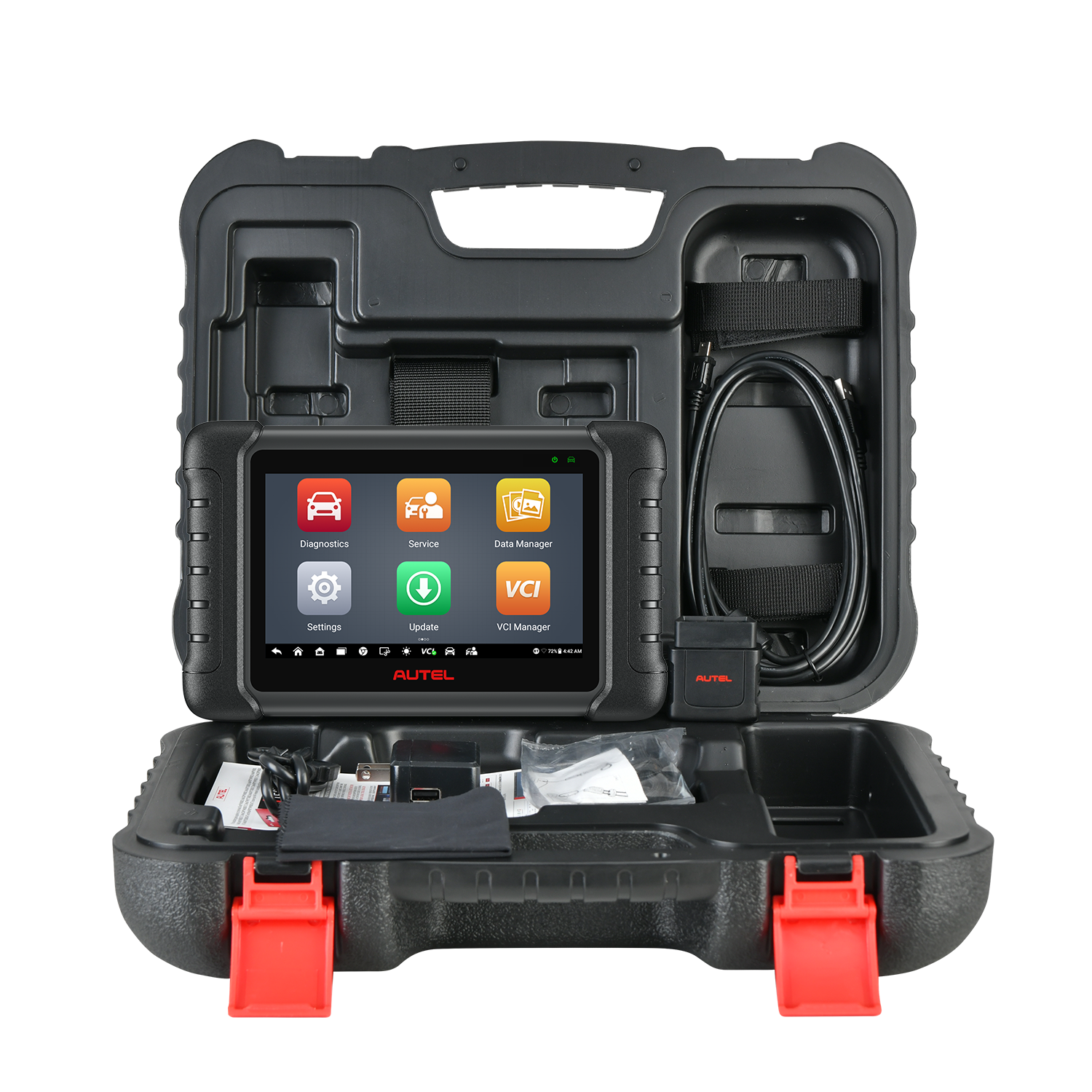

Autel MaxiDAS DS808S-BT 2024 Scanner - Powerful Hardware
Autel MaxiDAS DS808S-BT is upgraded from DS808 / MP808, which features more advanced hardware than old models, including faster Rockchip RK3566 Processor, 4G & 64G of RAM and ROM, Android 11, 2.4 & 5GHz. Also, this DS808S-BT performs to support ECU Coding now, such as BMW, Porsche, VW, etc. And it is also cost-effective, as you can get the same diagnostic functions and services as MS906. So it is actually the best choice for a workshop or professional mechanic.
What features of Autel MaxiDAS DS808S-BT?
- Advanced ECU Coding: MaxiDAS DS808S-BT has advanced ECU Coding Same as MS906 Pro, which can match/code/learn replaced ECUs, code adaptive data, customizations settings, and activate high-end features.
- Unlock Hidden Features: With this function, you are able to customize the configuration already in the vehicle, such as one-click start/stop, one-button folding mirrors, seatbelt warning sounds, and 3-time flasher setting.
- Offline Coding/Adaptation: Read the code from the original module, and then write the code to the new module for Jaguar, Vauxhall, Opel, etc.
- VAG Guided Functions: Customers operate according to the step instructions, simplifying the operating procedures.
- Ultra-level Hardware Configuration: 5X Faster than MS906 & MS906BT with Android 11.0 and Rockchip RK3566, etc.
- Bi-Directional Control / Active Test: Full control over various car components, parts to perform active tests like EVAP test, cooling fan, injector test, cycling test, ABS motor pump test, A/C Clutch Switch On/Off etc.
- 31+ Hot Services: Meet all your daily maintenance demands, such as ABS, SCR, SAS reset, Throttle, Cylinder, Trans Adaptation and etc.
- OE-Level Full System: You can read DTCs and data streams for all available systems, and perform the active test, retrieve ECU Info on the most extensive vehicles.
- 10000+ Wide Coverage: 10000+ Models, Still Expanding for the latest makes and models from 1996-2024, 150+ Car Manufacturers, FCA AutoAuth, Renault Gateway.
- Support 21+ Languages: Support Multiple Languages such as English, German, French, Spanish, Portuguese, Russian, Swedish, etc. and NO IP Restrictions, you can bring to other countries to expand your business.
- One Year Free Update: DS808S-BT comes with one year free software update and it can work with MV108S Camera and BT506 Battery Tester.
Autel MaxiDAS DS808S-BT with ECU Coding Function
Autel DS808S-BT performs ECU Coding Function same as MS906BT / MS906 Pro, and will save more Budget for you. This ECU Coding Function is able to work for BMW, Porsche, VW, etc., which allows you to reprogram the adaptive data after a repair or replacement.
What can this Function do for you?
- Match / Code / Learn Replaced ECU
- Activate High-End Features
- Online ECU Coding for BMW / Porsche / VW, etc
- Customization Settings
- Code Adaptive Data
- Improve your Vehicle Performance
Unlock Hidden Feature
- You can use the DS808S-BT to refresh hidden functions and customize the configuration already in the vehicle. including one-click start/stop, seatbelt warning sounds, one-button folding mirrors and more.
VAG Guided Functions
- The DS808S-BT can be used with VAG Guided Functions, such as VW, Audi, Skoda, Seat, Man LD, etc. This function is able to simplify complex functions and improve efficiency, which make your work easier.
Note: The DS808S-BT is not universal for vehicles, please email us your VIN to check.
Autel MaxiDAS DS808S-BT with OE-Level All Systems Diagnostic
The Autel MaxiDAS DS808S-BT Scan Tool has the ability to diagnose all systems, which is comparable to original factory. This function is so convenient that you can quickly scan all systems and find the defective parts, thus improving your work efficiency and saving your precious time.
It mainly works well to read & clear codes, ECU information reading, read live data, view freeze frame, graphic data, and performs special functions for all available systems.
The DS808S-BT is your best choice for all system diagnostic, which same as MS906, including Anti-lock Brake System(ABS), Electronic Parking Brake(EPB), Battery Mange System(BMS), Supplemental Restraint System(SRS), Steering Angle System(SAS), Air Conditioning System, etc.
Popular Maintenance Service Functions
If you have to reset your vehicle, then DS808S-BT probably a good choice for you. The services including but not limited Oil Reset, EPB Reset, TPMS Reset, ABS Bleed, BMS Reset, Throttle Matching, SAS Calibration, Suspension Calibration, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, Cylinder, Clutch, A/F Setting, etc.
- Oil Reset: Reset the oil change calculator in the engine and automatic transmission
- SAS Reset: Adaptation of the sensor to the angular position of the steering wheel
- EPB Reset: Replacement of brake pads on vehicles with an electric parking brake
- DPF Reset: Regeneration of diesel particulate filter
- BMS Reset: Battery registration and reset
- ABS Bleed: ABS Brake Bleeding
- Injector, Throttle, Seats, Odometer, Airbag reset, Headlamp, Cylinder, etc.
Note: The compatible services may differ from different vehicles.
Autel MaxiDAS DS808S-BT with Bi-Directional Control/Active Test
The Autel DS808S-BT is favored by more and more repair shops to quickly and precisely locate the problem, which save you the trouble to disassemble the car into parts to detect the problem, saving you more time to maximize your working efficiency. This function allows you to send commands to control various module actuators and quickly know any components needed to be replaced or not.
The function of full bi-directional control can be used in windscreen, mirror fold/unfold, windows & door, sear control, and more.
Autel MaxiDAS DS808S-BT Extension Functions
Endoscope Function(with MV105/MV108)
- Autel DS808S-BT can work with the Autel MV105 or MV108 digital inspection camera to check hard-to-see area, such as vent pipe, engines, air conditioners, sofa corners, etc.
Battery Test(with BT506)
- Autel DS808S-BT can work with BT506 to have battery test, cranking test, and generator test.
FCA Auto auth
- DS808S-BT allows you to clear codes, do bi-directional control, and perform special functions for Chrysler FCA models after 2018 without special adapters.
Cloud Management
- This function allows you to upload date or diagnostic reports to Autel Cloud, and it makes it easier to share reports directly to clients via email/QR code.
10000+ Vehicle Coverage & Multiple Languages Supported
Autel DS808S-BT has extensive vehicle coverage for more than 80+ US, Asian, and European vehicle makes and models. And it supports multi-language, such as English/German/Italian/Spanish/French, etc.
Autel MaxiDAS DS808S-BT Specifications
| Operating System | Android 11 |
| Processor | Cortex-A55 quad-core processor (1.8GHz) |
| Memory | 4GB RAM & 64GB On-board Memory |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Wi-Fi（802.11a/b/g/n/ac） |
| USB 2.0，Mini USB 2.0 | |
| Wireless BT V2.1+EDR | |
| HDMI Type A | |
| SD Card (Support up to 64GB) | |
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output | Input: N/A |
| Output: Beep | |
| Power and Battery | 3.7 V/5000mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Input Voltage | 5 V/1.5A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (-4 to 140°F) |
| Dimensions(WXHX D) | 270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”) |
| Weight | 885g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6 |
Autel MaxiDAS DS808S-BT Package List
MaxiDAS DS808S-BT Product guides and documents
DS808S-BT User Manual (PDF)
DS808S-BT Quick Guide (PDF)
Autel DS808S-BT Software Update
Autel DS808S-BT Software Update
Certificate
www.diagmart.com is Autel Authorized Online Agent. Products Created by Autel ® Innovation & Quality You Can Trust.
Autel MaxiDAS DS808S-BT Comparison Chart
